Electric dade a ɛnyɛ den flange ball valve .

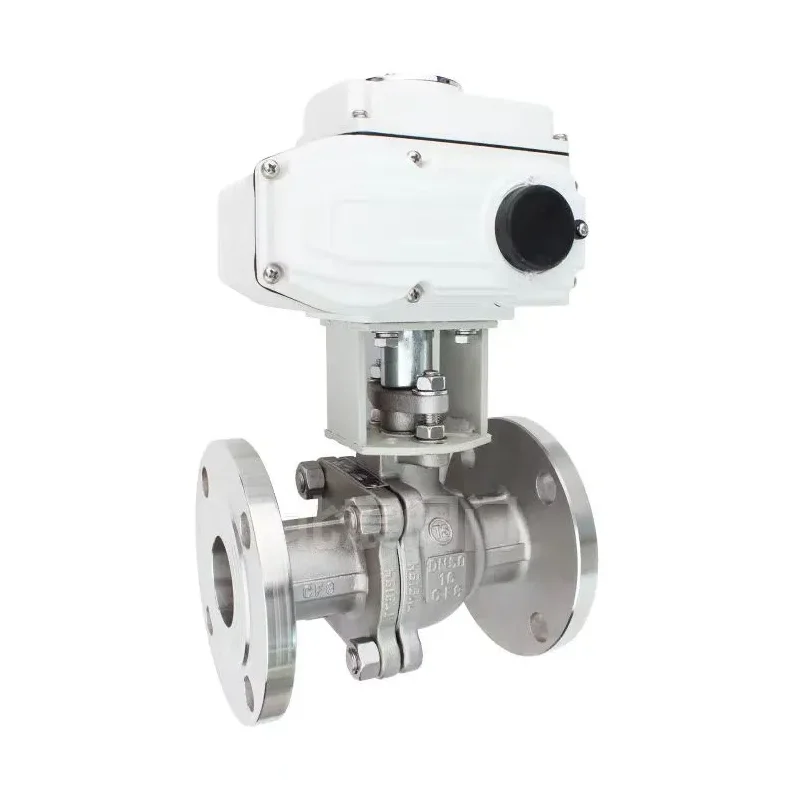

Electric stainless steel flange ball valve a yɛn Shengshi Huagong no yɛ no yɛ afiri a ɛma anyinam ahoɔden a ɛma anyinam ahoɔden yɛ adwuma. Ɛfa stainless steel valve nipadua ne flange nkitahodi nhyehyɛe a ɛkorɔn. Wɔde di dwuma kɛse wɔ nhyɛso kɛse, ɔhyew a ɛkorɔn anaasɛ nneɛma a ɛyɛ mmerɛw sɛ ɛbɛsɛe wɔ petroleum, nnuru, anyinam ahoɔden, nnuruyɛ, aduan ne nnwuma afoforo mu na ama wɔanya nsu a ɛsen a wɔatwa anaasɛ nhyehyɛe dwumadi ahorow a ɛyɛ pɛpɛɛpɛ.

Product Description

valve body/ball a ɛwɔ yɛn electric stainless steel flange ball valve no yɛ 304/316 stainless steel (a ɛyɛ nea wopɛ), a ɛwɔ mfaso a ɛne corrosion resistance, ɔhyew a ɛkorɔn a ɛko tia ne ahoɔden a ɛkorɔn a wɔde mia no; Ade a wɔde siw ano wɔ saa ade yi mu ne PTFE (polytetrafluoroethylene, a dade a ɛyɛ den no fata ma ɔhyew a ɛkɔ soro tebea horow na ebetumi ahwɛ ahu sɛ nsu a ɛbɛtɔ zero.

Bere a wɔanya control signal no akyi no, anyinam ahoɔden a ɛma anyinam ahoɔden a ɛnyɛ dade flange ball valve no ma valve no dua no dannan 90°, na ɛma bɔɔl no dannan ma ɛbue koraa (medium circulation) anaasɛ ɛto mu koraa (twa koraa). Supporting adjustable actuators betumi anya 0-90° stells stell adjustment na pɛpɛɛpɛ control no flow.

Mfaso a ɛwɔ nneɛma a wɔyɛ so .

Nkwa tenten: dade a ɛnyɛ den + nsɔano a ɛko tia, ɔsom nkwa boro mpɛn 100,000.
Intelligent: Ɛboa remote control/PLC/DCS nhyehyɛe a wɔde ka bom.
Zero leakage: V-shaped ball design + seal abien, sealing level no du ansivi level.
Nsiesie a ɛyɛ mmerɛw: Modular nhyehyɛe, enhia sɛ wɔpaapae valve nipadua no mu de si nsɔano no ananmu.

Mfiridwuma ho nsɛm:

Parameter Category .	Nkyerɛkyerɛmu a ɛkɔ akyiri .
Valve nipadua mu nneɛma .	304 dade a ɛnyɛ den / 316 dade a ɛnyɛ den / 316L dade a ɛnyɛ den (wopɛ) .
Nkitahodi kwan .	Flange nkitahodi (gyinabea: GB/T, ANSI, DIN, JIS, ne nea ɛkeka ho) .
Flange Nsɔano a ɛwɔ soro .	RF (anim a wɔama so) / ff (pilla a ɛyɛ pɛ) / RTJ (ring joint surface) .
nominal diameter (DN) .	DN15 ~ DN500 (Support customized non-standard diameter) .
Nhyɛso a ɛwɔ so .	PN1.6, PN2.5, PN4.0, PN6.4MPa (anaa Class150, Class300, ne nea ɛkeka ho) .
Ɔhyew a ɛfata .	-29°C ~ +200°C (ptfe nsɔano) . -29°C ~ +450°C (dadeɛ a ɛyɛ den a wɔde hyɛ mu) .
Medium type .	Nsuo, nsuonwini, ngo, acid ne alkaline nsuo, mframa (ɛsɛ sɛ wɔkyerɛ sɛ ɛyɛ corrosive media) .
Drive mode .	Electric Actuator (Nnipa a Wɔde Di Dwuma ne Mframa a Wɔde Yɛ Adwuma) .
Tumi a ɛma ahoɔden .	AC220V / AC380V / DC24V (wobetumi ayɛ ahoɔden afoforo) .
Control sɛnkyerɛnne .	Switch Type: Passive Contact . Nsakraeɛ su: 4-20mA / 0-10V .
Ahobanbɔ level .	IP67 / IP68 (mfutuma ntumi nkɔ mu na nsu ntumi nkɔ mu) .
Grade a ɛyɛ den sɛ ɛbɛpae .	Ex d1 capet4 / ex d7
Nsuo a ɛsene no su .	Full bore (nsu a ɛsen biara nni hɔ) / a wɔatew so bore (ahunmu a wɔkora so) .
Nneɛma a wɔde hyɛ mu .	PTFE (Polytetrafluoroethylene) / PPL (Polypropylene a wɔahyɛ no den) / dade a ɛyɛ den a wɔde hyɛ mu .
Leakage level .	ANSI Class VI (nsɔano a ɛyɛ mmerɛw) / ANSI adesuakuw IV (dade nsɔano) .
Bere a wɔde sesa .	≤15 seconds (ɛgyina actuator model so) .
