Kɔbere waya a wɔde bɔ bɔɔl valve .

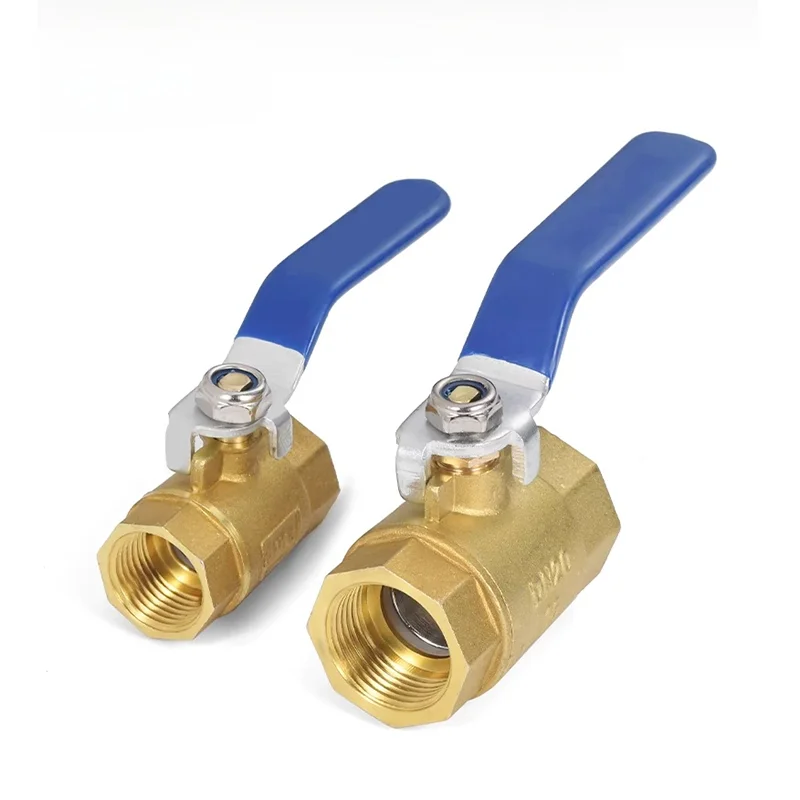

Kɔbere waya buckle ball valve a yɛn Shengshi huagong no yɛ no, wɔsan frɛ no kɔbere a wɔde ayɛ bɔɔl valve. Ɛyɛ valve a ebue anaasɛ ɛto nsu no mu denam valve core (ball) a ɛdannan no so. Ne nkitahodi kwan no yɛ thread (thread). Valve nipadua mu nneɛma no titiriw ne kɔbere aduru (te sɛ kɔbere, kɔbere), a ɛwɔ su a ɛne sɛ ɛbɛko atia nsɛe ne nsɔano pa.

Product Description

Shengshi Huagong kɔbere asaawa bɔɔl valve no yɛ kɔbere a wɔde afra, a ɛyɛ nea ɛko tia nsɛe kɛse na ɛfata ma nsɛm a ɛnyɛ nea ɛyɛ mmerɛw anaasɛ ɛyɛ mmerɛw sɛ ɛbɛsɛe te sɛ nsu, nsu a ɛyɛ hyew, ngo, ne mframa. Aguade no wɔ nhyehyɛe a ɛnyɛ den na ɛma wobue ntɛmntɛm na ɛto mu. Wobetumi abue/atoto mu koraa denam 90° a ɛkyinkyini so, a nsu a ɛsen no ano aduru a ɛba fam ne nsɔano adwumayɛ pa. Nkitahodi kwan no fa threaded connection, a ɛyɛ mmerɛw sɛ wode bɛhyɛ mu na enhia welding. Ɛfata ma nsu afiri nketewa te sɛ DN15-DN50.

Nneɛma a ɛho hia titiriw .

Parameter din .	Parameters pɔtee bi .
nominal diameter .	DN15 - DN100 (wɔbɛtumi apaw nkyerɛkyerɛmu ahodoɔ sɛdeɛ ahiadeɛ ankasa teɛ, te sɛ DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, ne nea ɛkeka ho) .
Nhyɛso a wɔfrɛ no nominal .	PN1.6MPa, PN2.5MPa, PN4.0MPa, ne nea ɛkeka ho (Nhyɛso a ɛtaa ba, nhyɛso soronko afoforo nso wɔ hɔ) .
Ɔhyew a ɛfata .	-20°C - 200°C (Nneɛma ahorow ne nsɔano tumi yɛ nsakrae ma ɛne ɔhyew kwan ahorow hyia, eyi ne ɔkwan a wɔfa so yɛ ade nyinaa) .
Medium a ɛfa ho .	Nsuo, ngo, gas, nsuonwini, ne nea ɛkeka ho (egyina nneɛma ne nsɔano adwumayɛ so wɔ ball valve no mu, wobetumi de adi dwuma wɔ nsɛm ho amanneɛbɔ ahorow mu) .
Valve nipadua mu nneɛma .	Kɔbere a wɔde afra (te sɛ H59, H62 kɔbere, ne nea ɛkeka ho, a wɔapaw no sɛnea nneɛma a wɔyɛ no hwehwɛ) .
Ball material .	Kɔbere aduru, dade a ɛnyɛ den (te sɛ 304, 316, ne nea ɛkeka ho, wɔde dade a ɛnyɛ den di dwuma wɔ mmere bi a ɛwɔ ahwehwɛde a ɛkorɔn a ɛko tia corrosion) .
Valve dua no mu nneɛma .	Kɔbere aduru, dade a ɛnyɛ den .
Nsɔano kwan so .	Nsɔano a ɛyɛ mmerɛw (te sɛ polytetrafluoroethylene PTFE, nitrile rɔba Nbr, ne nea ɛkeka ho), nsɔano a ɛyɛ den (te sɛ dade kosi dade nsɔano) .
Nkitahodi kwan .	Threaded connection (akyi asaawa anaa emu asaawa, asaawa ho nkyerɛkyerɛmu gu ahorow sɛnea ne diameter no te, te sɛ G1/2", G3/4", G1", ne nea ɛkeka ho)
Ɔkwan a wɔfa so yɛ adwuma .	Manual (a wɔde nsa anaa nsa twitwiw na ɛyɛ adwuma), anyinam ahoɔden (a wɔde anyinam ahoɔden a ɛma anyinam ahoɔden ayɛ), mframa a wɔde yɛ adwuma (a wɔde mframa a ɛyɛ adwuma ayɛ), ne nea ɛkeka ho.
Leakage level .	Di gyinapɛn ahorow a ɛfata so, te sɛ ANSI B16.104 Standard IV anaa V (a wɔakyerɛ sɛnea nneɛma a wɔyɛ no yiye ne nea wɔde di dwuma ho ahwehwɛde te) .
Ball a wobue no anim .	90° (sɛ bɔɔl valve no abue koraa a, bɔɔl no ano a wobue no yɛ digrii 90, na ɛma nsu no sen kɛse) .
