Pneumatic stainless steel a wɔde ayɛ ball valve .

Wɔ mfiridwuma mu automation ne fluid control mu no, mframa a ɛnyɛ den a ɛyɛ dade a wɔde ayɛ ball valve a Shengshi Huagong de ba no abɛyɛ nea eye ma adwumayɛ tebea horow pii a ɛyɛ den esiane sɛ ɛyɛ adwuma yiye na ɛyɛ pɛpɛɛpɛ a wɔde di dwuma ne nea wotumi de ho to so a ɛko tia corrosion nti. Saa valve yi ka mframa a ɛyɛ adwuma ne dade a ɛnyɛ den a wɔde ayɛ ball valve bom, a ɛnyɛ sɛ ɛkora dade a ɛnyɛ den so no adwumayɛ a ɛkyɛn so nko, na mmom ɛma wohu akyirikyiri a wɔde di dwuma, na ɛma nsu a wɔde di dwuma no yɛ adwuma yiye na ahobammɔ wom kɛse.

Product Description

Saa mframa a ɛnyɛ den a ɛyɛ dade a wɔde ayɛ ball valve yi titiriw ne dade a ɛnyɛ den valve nipadua, bɔɔl, valve dua, sealing ring, pneumatic actuator ne control accessories. Valve nipadua, ball ne valve stem no yɛ 304 anaa 316 stainless steel, na wɔyɛ no pɛpɛɛpɛ na wɔyɛ ho adwuma de hwɛ hu sɛ ahoɔden a ɛkorɔn ne corrosion resistance; Wɔde nneɛma a ɛyɛ papa te sɛ polytetrafluoroethylene (PTFE) ne nitrile rɔba (NBR) na ɛyɛ nsɔano ring no na ama wɔatumi asɔ ano yiye; Pneumatic actuator no yɛ cylinder, piston, spring, pneumatic control element, ne nea ɛkeka ho, na mframa a wɔahyɛ no den na ɛkanyan no ma ɛhwɛ valve no bue ne nea ɛto mu no so pɛpɛɛpɛ.

Sɛ mframa a wɔahyɛ no den no hyɛn mframa a ɛma mframa bɔ no mu a, piston no ma mframa no yɛ adwuma wɔ mframa nhyɛso no dwumadi ase, na ɛpia valve no dua no ma ɛkyinkyini, na afei ɛma bɔɔl no dannan ne ho ma ɛkyinkyini. Sɛ mframa a wɔahyɛ no den no pia piston no ma ɛdannan bɔɔl no 90° a, valve no bue na medium no twam yiye; Sɛ wɔsesa mframa a ɛkɔ mu no kwan a, piston no ma valve no dua no dannan 90° wɔ ɔkwan a ɛne no bɔ abira so wɔ spring reset ahoɔden anaa mframa a ɛkɔ akyi no dwumadi ase, na valve no to mu ma wotwa nsu a ɛsen no mu. Bio nso, ɛdenam control accessories te sɛ solenoid valves ne positioners a ɛne no hyia so no, wobetumi ahwɛ valve no so wɔ akyirikyiri, wobetumi asiesie nsu a ɛsen no, na wobetumi de ayɛ adwuma a ɛnyɛ hwee a ɛne automation control system no wɔ abusuabɔ a ɛnyɛ den.

Mfiridwuma ho nsɛnkyerɛnne .

Parameter Category .	Parameters pɔtee bi .
Nneɛma a wɔyɛ no ho mfonini .	Q611F-16P, Q611F-25P, Q611F-40P, ne nea ɛkeka ho (ɛsono sɛnea nhyɛso no te) .
nominal diameter .	DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150
Nhyɛso a wɔfrɛ no nominal .	1.6mpa, 2.5mpa, 4.0mpa .
Ɔhyew a ɛfata .	.
Valve nipadua mu nneɛma .	304 dade a ɛnyɛ den, 316 dade a ɛnyɛ den, 316L dade a ɛnyɛ den .
Ball material .	304 dade a ɛnyɛ den, 316 dade a ɛnyɛ den, 316L dade a ɛnyɛ den .
Stem material .	304 dade a ɛnyɛ den, 316 dade a ɛnyɛ den, 316L dade a ɛnyɛ den .
Nsɔano Nneɛma .	PTFE (polytetrafluoroethylene), PPL (para-polyphenylene), NBR (nitrile rɔba) .
Nkitahodi kwan .	Nhama a wɔde nhama ayɛ, sɛnea GB/T 7306.1-2000, GB/T 7306.2-2000 kyerɛ no .
Drive mode .	Mframa a ɛma mframa bɔ (a ɛyɛ adwuma biako, a ɛyɛ adwuma abien) .
Mframa fibea nhyɛso .	0.4 ～ 0.7mpa .
Nsɛm ho amanneɛbɔ a ɛfa ho .	Nsuo, ngo, gas, acid ne alkaline nsuo, ne nea ɛkeka ho (wɔayɛ no foforɔ sɛdeɛ adeɛ a wɔde hyɛ mu ne valve nipadua mu adeɛ teɛ) .
Adwumayɛ kwan .	Manual (emergency in asɛm a ɛfa cylinder a entumi nyɛ adwuma ho), mframa a ɛwɔ akyirikyiri a wɔde di dwuma .
Leakage level .	ANSI B16.104 Class VI (nsuo a ɛtɔ) .
Actuator interface .	ISO 5211 gyinapɛn .
Ayaresa a wɔde ko tia akisikuru .	Surface polishing ne passivation ayaresa, nickel plating ne chrome plating betumi ayɛ wɔ ahiade soronko so .
Ɔsom Asetra .	Bere a wobue ne bere a woto mu wɔ adwumayɛ tebea a ɛfata mu ≥ 500,000 mpɛn .

Application scenarios .

(i) Nnwumayɛbea .

Wɔ nnuruyɛ adwuma mu no, wɔde di dwuma de hwɛ nneɛma ahorow a wɔde yɛ nneɛma ne nneɛma ahorow a ɛyɛ corrosive, te sɛ acid ne alkali solutions, organic solvents, ne nea ɛkeka ho so; Wɔ petrol ne gas adwuma mu no, wɔde yɛ nsakrae na wotwa ntɛm ara na wotwitwa ngo a wɔmfa nhyehyɛ mu ne abɔde mu mframa a wɔde fa mu ne ne kyekyɛ mu ntɛmntɛm; Wɔ aduane, anonneɛ ne nnuruyɛ nnwuma mu no, wɔbɛtumi de 316 stainless steel pneumatic ball valves a ɛdu ahotew gyinapɛn ho no adi dwuma wɔ raw material processing, product filling ne links foforɔ mu de ahwɛ sɛ ahobanbɔ ne ahotew a ɛwɔ production process no mu.

(ii) ahoɔden ne nneɛma a atwa yɛn ho ahyia ho banbɔ ho adwuma .

Wɔ ɔhyew nhyehyɛe no mu no, wɔyɛ nsakrae wɔ nsu a ɛyɛ hyew no mu pɛpɛɛpɛ denam automatic control so; Wɔ adwumayɛbea a wɔde nsu fĩ gu mu no, wɔde di dwuma de hwɛ nsu fĩ ne nsu a ɛyɛ fĩ a wɔde fa nsu mu ne nea wɔde gu mu no so na ama wɔasiw efĩ a ɛbɛtɔ no ano yiye; Wɔ ahoɔden foforo no mu, te sɛ photovoltaic, hydrogen ahoɔden ne nneɛma afoforo a wɔyɛ no, wɔde ahotoso di nsɛm ho amanneɛbɔ ahorow so de hwɛ hu sɛ nneɛma a wɔyɛ no bɛyɛ adwuma yiye.

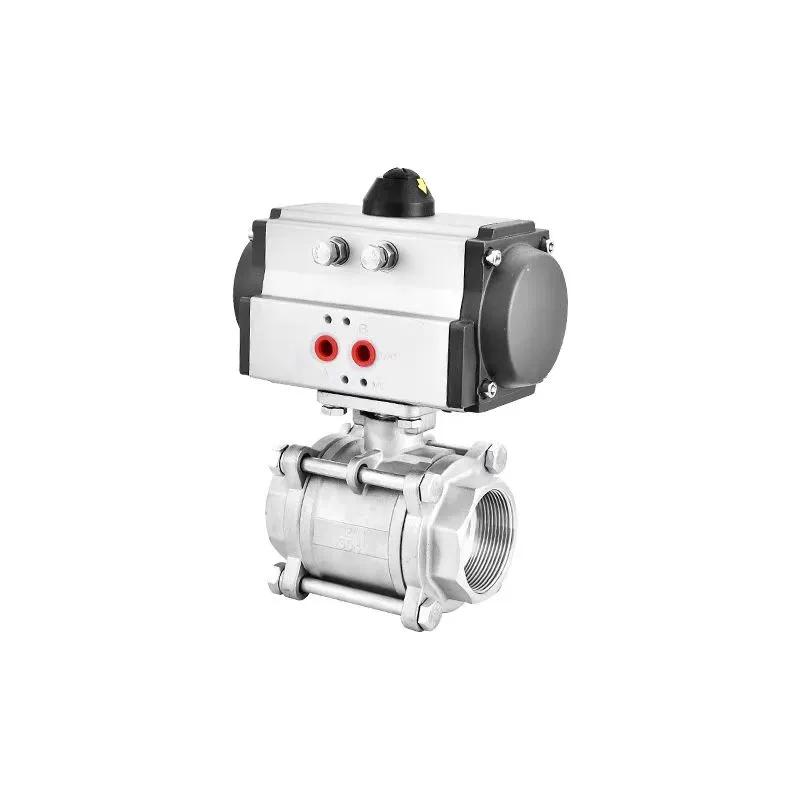

Pneumatic Stainless Steel Threaded Ball Valve
